Slot-CPU Full Size

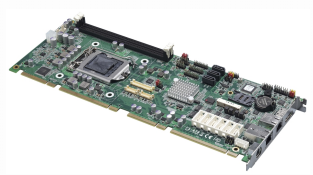

	FS-A79 Support 8th Generation Intel&righs; Core Desktpo Processors 2x DDR4 DIMM 2666 MHz up to 32GB Integrated VGA, DVI, DisplayPort, LVDS for Triple display support 1x Intel&rights; Gigabit PHY LAN, 1x Intel&rights; Gigabit LAN 1x MiniPCIe, 3x SATA3, 1x PS/2, 1x LPC, 1x GPIO 2x RS232/RS422/RS485, 4x RS232 6x USB3.1 Gen2, 4x USB 2.0 Support Watchdog Timer Support 4K resolution Need Backplane from Standart 24-pin ATX power supply (20-pin is compatible) and P4 4-pin 12V(Onboard) passende passive Backplane Technische Daten
Slot-CPU Full Size
	HiCore-i35Q - Slot CPU für Core2Duo CPU Intel® Core™ 2 Duo/ Conroe/ Conroe-M/ Conroe-L LGA775 CPU Intel® Core™ 2 Duo/ Conroe/ Conroe-M/ Conroe-L LGA775 CPU Intel® Q35 Express & ICH9 Chipset SATA & PATA onBoard GB-LAN PICMG 1.0 Spec Supports PCI to ISA Bridge RS-232/422/485 12 x USB-Ports VGA onboard passende passive Backplane Technische Daten

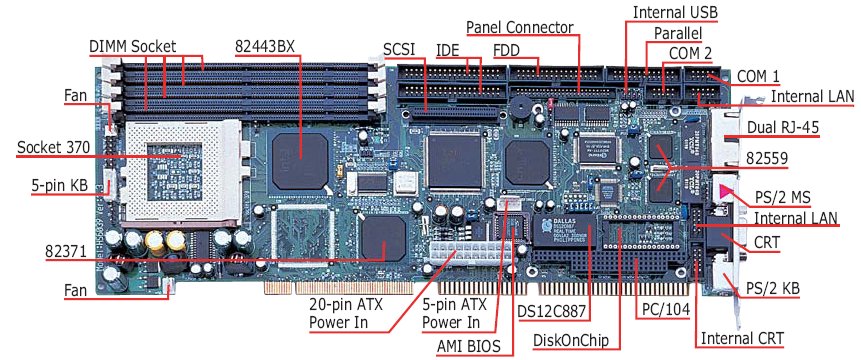

	Boser-HS-6039 - PICMG Slot CPU Socket 370 Intel Celeron/Coppermine Intel 82443BX/82371 Chipset FSB 66, 100, 133 MHz 4 x DIMM sockets max. 1GB Winbond W83977 chipset for super I/O Intel 21152 PCI Bridge controller. C&T 69030 CRT/Panel Display Controller Ethernet (LAN) Intel 82559 chipsets for 10/100Base-TX connectivity Symbios 53C895 Ultra II SCSI controller 2 x COM ports, two USB connectors PC/104 expansion bus 288MB max DiskOnChip socket passende passive Backplane Technische Daten
	IP-4BDP22 - Slot CPU für Pentium 4 M (lüfterlos) lüfterlose Slot CPU mit Pentium 4 Mobile CPU Hyper Threading Technology Socket 478 Chipsatz 845D Busspeed 400 MHz RAM up to 2 GB ATI Mobility LCD/VGA Controller Ethernet 4 x USB, 2 x RS-232 passende passive Backplane Technische Daten
	HiCORE-F845A/LN - Slot CPU für Pentium 4 Pentium 4 Slot CPU (Socket 478) CPU-Speed up to 2 GHz Award PnP BIOS Busspeed up to 400 MHz Intel 845 Chipset System Memory up to 3 GB Display Controller ATI Mobility M6 Dual Ethernet on Board 1 x FDD, 2 x ATA-100 IDE Disk on Chip Support up to 288 MB Interfaces : 1 x RS-232, 1 x RS-232/422/485, 1 x LPT1 2 x USB 1.1 passende passive Backplane Technische Daten
	HiCORE-i6321 Dual Pentium Slot CPU (Socket 370) 64 Bit PCI/ISA -Bus Dual -Processors Pentium III/ (Tualatin) max 1.4 GHz RAM-Memory max. 4 GB, ECC support Main Chipset Serverworks Superset III LE FSB 100/133 MHz Disk on Chip up to 288 MB Flat-Panel /CRT-Controller on Board ATI-Rage XL Dual Ethernet LAN Controller Intel 82559 (10/100MBit/s) Ultra DMA-Controller 4 x EIDA 2x RS-232 1x Parallel-Port Dual USB - Port IrDA InterfaceWatchdog-Timer passende passive Backplane Technische Daten
	HiCORE-i6320 (FC-PGA/FC-PGA2) Slot CPU 1/1 Länge mit ISA/PCI-Bus Prozessoren Celeron bis Pentium III (Tualatin) 1.26 GHz Intel Chipset 815 E Speicher bis 512 MB PC133SDRAM DiskonCip up to 288MB FSB 133 MHz Graphic 82815 incl. in 815E CRT-Controller on Board Triple Ethernet 2 x Intel 82559 (10/100MBit/s), 1 x 82562ET Ultra DMA-Controller EIDA SCSI ADAPTEC AIC-7892 onBoard Super I/O-Chipset Winbond W83627HF 2x RS-232 Parallel-Port Hardware Monitoring passende passive Backplane Technische Daten
	HiCORE-i6314 (FC-PGA/FC-PGA2) Slot CPU 1/1 Länge mit ISA/PCI-Bus Prozessoren Celeron bis Pentium III/1150 VIA Chipset PL 133 Speicher bis 1512 MB FSB 133 MHz Graphic S3-Savage 2000 CRT-Controller on Board Ethernet Realtek Controller 8139 (10/100MBit/s) Ultra DMA-Controller EIDA 1x RS-232, 1 x RS-232/RS-422/RS-485 2x Parallel-Port Audio PC/104-Plus Stecker Watchdog-Timer passende passive Backplane Technische Daten
	HiCORE-i6313 (Socket 370 Card) Slot CPU 1/1 Länge mit ISA/PCI-Bus Prozessoren Celeron bis Pentium III/1150 VIA Chipset PL 133 Speicher bis 1512 MB FSB 133 MHz Graphic S3-Savage 4 CRT-Controller on Board Ethernet Realt 8139 (10/100MBit/s) Ultra DMA-Controller EIDA 1x RS-232, 1 x RS-232/RS-422/RS-485 2x Parallel-Port Audio Watchdog-Timer passende passive Backplane Technische Daten
	HiCORE-i6312 (Socket 370 Card) Slot CPU 1/1 Länge mit ISA/PCI-Bus Prozessoren Celeron bis Pentium III/1150 VIA Chipset PL 133 Speicher bis 1512 MB FSB 133 MHz Graphic S3-Savage 4 Flat-Panel /CRT-Controller on Board Dual Ethernet Intel 82559 (10/100MBit/s) Ultra DMA-Controller EIDA 1x RS-232, 1 x RS-232/RS-422/RS-485 2x Parallel-Port PC/104-Plus Stecker Watchdog-Timer passende passive Backplane Technische Daten
	HiCORE-i6311 (Socket 370 Card) Slot CPU 1/1 Länge mit ISA/PCI-Bus Prozessoren Celeron bis Pentium III/1000 MHz VIA Chipset PL133 Speicher bis 1024 MB FSB 133 MHz Graphic S3-Savage 4 Flat-Panel /CRT-Controller on Board Intel 82559 (10/100MBit/s) Ultra DMA-Controller EIDA 1x RS-232, 1 x RS-232/RS-422/RS-485 2x Parallel-Port Audio Watchdog-Timer passende passive Backplane Technische Daten
	PIA-662 Pro (Socket 370) Slot CPU mit PISA-Bus Prozessoren bis Pentium III/1150MHZ Speicher bis 768 MB Chipset VIA Apollo Pro133 FSB 133 MHz Flat-Panel /CRT-Controller on Board Realtek 8139 On Board (10/100MBit/s) Ultra DMA-Controller EIDA 1x RS-232, 1 x RS-232/RS-485 2x Parallel-Port Watchdog-Timer passende passive Backplane Technische Daten

	PIA-662 (Socket 370) Slot CPU mit PISA-Bus Prozessoren bis Pentium III/750MHZ, Celeron 600 MHz Speicher bis 512 MB Chipset Intel 440 BX FSB 66/100 MHz Flat-Panel /CRT-Controller on Board Realtek 8139 On Board (10/100MBit/s) Ultra DMA-Controller EIDA 1x RS-232, 1 x RS-232/RS-485 2x Parallel-Port Watchdog-Timer passende passive Backplane Technische Daten
	PIA-672 (Socket 7) Slot CPU 1/1 Länge mit PISA-Bus Prozessoren bis Pentium MMX bzw. AMD K6 2/3 bis 550 MHz Speicher bis 1024 MB Chipset VIA Cyrix FSB 100 MHz Flat-Panel /CRT-Controller on Board Disk On chip 2000 Socket for Flash Disk bis 288 MB Ultra DMA-Controller EIDA 1x RS-232, 1 x RS-232/RS-422/RS-485 2x Parallel-Port Temperatur Watchdog-Timer passende passive Backplane Technische Daten
Passive Backplanes wählen Sie aus über 26 verschiedenen passive Backplanes PICMG Full Size PCI/ISA passive Backplanes PICMG Passive Backplane with PCI Bridge PBP Pisa (half-size PCI/ISA) passive Backplanes PBI Half Size passive Backplanes PBR PICMG full size PCI/ISA Riser Cards Detaillierte Übersicht und technische Daten
